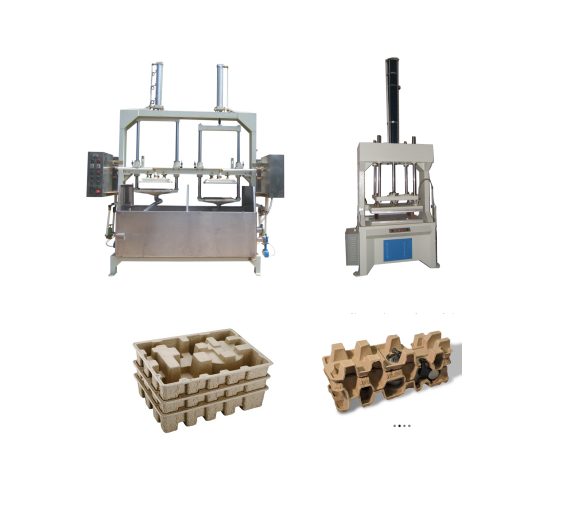

Pulp Molding Industrial Paper Pulp Packaging Products Hot Press Shaping Machine
Machine Description
Due to the varying degrees of deformation of wet paper blanks after drying or air drying, there are also varying degrees of wrinkles on the surface of the product.
So after drying, it is necessary to shape the product. Plastic surgery is the process of placing a product on a molding machine equipped with a mold, and subjecting it to high temperatures (usually between 100 ℃ and 250 ℃) and high pressures (usually between 10 and 20MN) to obtain a product with a more regular shape and smoother surface.
Due to the wet pressing process, the product is formed without drying and directly subjected to hot pressing shaping. So in order to ensure that the product is fully dried, the hot pressing time is generally more than 1 minute (the specific hot pressing time depends on the thickness of the product).
Including a hot press shaping machine, a lower mold seat, and a hot press component, wherein the hot press component comprises a first slider, a third cylinder, and an adsorption plate. The hot press shaping machine is equipped with an electric heating module inside. The structure design of this hot press is reasonable, the working efficiency is high, and the application is flexible. The working method of this pulp molding and hot pressing shaping machine has a high degree of automation in the working process, which improves production efficiency and is suitable for large-scale industrial applications.
We have various styles hot pressing shaping machine for your choose, such as below: pneumatic,hydarulic,pneumatic&hydarulic,electricity heating, thermal oil heating.
With different pressure matching:3/5/10/15/20/30/100/200 tons.
Characteristic:
Stable performance
High precision level
High level of intelligence
High security performance
Production Process
Molded pulp products can be simply divided into four parts: pulping, forming, drying&hot press shaping and packaging. Here we take egg box production as an example.
Pulping: waste paper is crushed, filtered and put into the mixing tank in a ratio of 3:1 with water. The entire pulping process will last about 40 minutes. After that you will get a uniform and fine pulp.
Molding: pulp will be sucked onto the pulp mold by the vacuum system for shaping, which is also a key step in determining your product. Under the action of vacuum, the excess water will enter the storage tank for subsequent production.
Drying & hot press shaping: formed pulp packaging product still contains high moisture content. This requires high temperature to evaporate the water. After drying, the egg box will have varying degrees of deformation because the structure of the egg box is not symmetrical, and the degree of deformation of each side during drying is different.
Packaging: finally, the dried egg tray box are put into use after finishing and packaging.
Application
The production process is completed by processes such as pulping, molding, drying, and shaping, which are environmentally friendly;
Products can overlap and transportation is convenient.
Pulp molded products, in addition to serving as meal boxes and tableware, are also used for packaging agricultural and sideline products such as egg trays, egg boxes, fruit trays, etc. They can also be used for industrial cushioning packaging, with good cushioning and protection effects. Therefore, the development of pulp molding is very rapid. It can degrade naturally without polluting the environment.
After-sales Service
Guangzhou Nanya Pulp Molding Equipment Co., Ltd. is a manufaciurer with near 30 years of experience in developing and producing pulp molding equipment. We have become ven proficient in the production process of equipment and molds, and we can provide our customer wih mature market analsis and production advice.
So if you purcase our machine,including but not limit below service you will get from us:
1)Provide 12 months warranty period, free replacement of damaged parts during the warranty period.
2)Provide operation manuals, drawings and process flow diagrams for all equipment.
3)After the equipment is installed, we have professional personnel to quide the buver's staff on the operation and maintenance methods4We can quide the buyer's engineer on production process and formula.
