O type vertical hydra pulper for Paper Pulp Molding Production Line Pulping
Machine Description

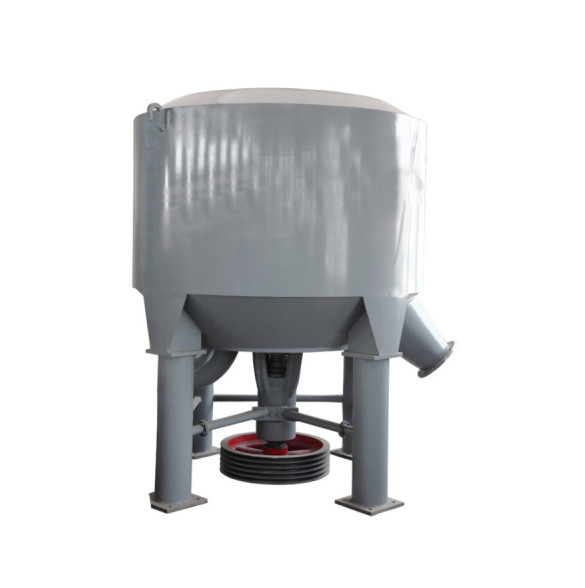

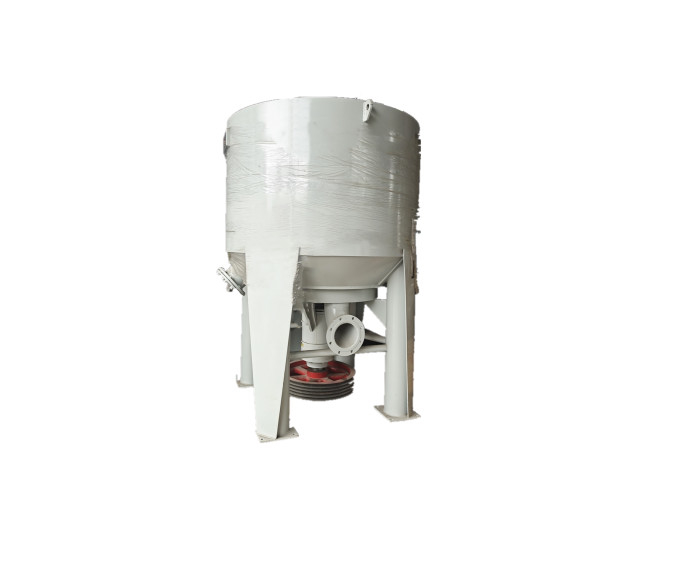

O Type Vertical Hydra Pulper

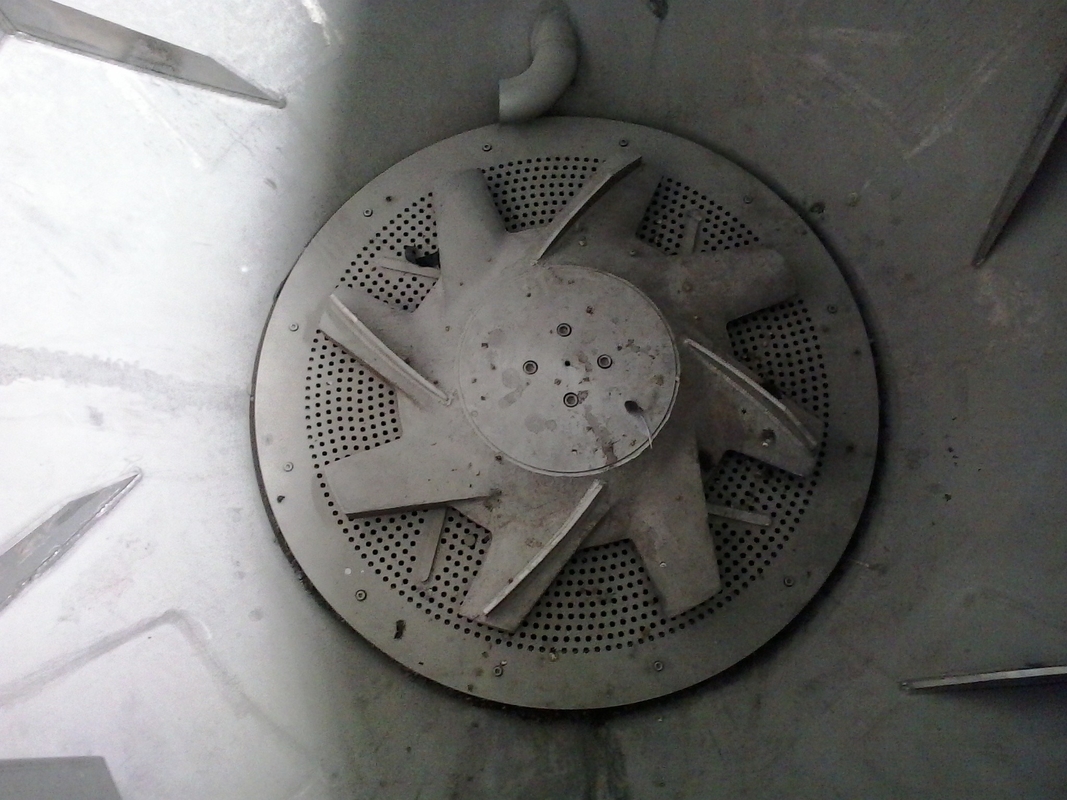

This hydra pulper is used in the process of pulp making . By matched up with the conveyor belt and vibration filter, Hydra pulper is capable of disintegrating the wasted paper into pulp and meanwhile screening out the impurities and maintaining certain consistency of pulping. Hydra pulper is mainly composed of tank, rotor, flying knife and screen plate. Carbon steel or stainless steel is optional for the material of tank.
Advantages of O Type Vertical Hydrapulper
- Multiple volume and capacity available
- The part contact with pulp is made of stainless steel or carbon steel
Specification
| Model of Machine | Volume | Capacity | Consistency of pulp | Power | Material of tank | Material of knife plate | |
| O type vertical hydra pulper | 1 | 1.5m³ | 100~150kg/hr | 3~5% | 22~90kw | carbon steel/stainless steel | carbon steel/stainless steel |
| 2 | 2.5m³ | 250~300kg/hr | 4~7% | 22~90kw | carbon steel/stainless steel | carbon steel/stainless steel | |
| 3 | 3.2m³ | 350~400kg/hr | 4~7% | 22~90kw | carbon steel/stainless steel | carbon steel/stainless steel | |
| 4 | 5m³ | 500~600kg/hr | 4~7% | 22~90kw | carbon steel/stainless steel | carbon steel/stainless steel | |
| 5 | 8m³ | 900~1200kg/hr | 8~10% | 22~90kw | carbon steel/stainless steel | carbon steel/stainless steel |
Our Team
Nanya company have over 300 employee and a 50 people R&D team including. Among them, there are a large number of long-term engaged in paper making machinery, pneumatics, thermal energy, environmental protection, mold design and manufacturing and other professional and technical research personnel. We keep innovating by drawing on advanced technology, created one and another leading quality machines by combining customer’s needs in many different industries, offer one-stop pulp molding packaging machinery solutions.
FAQ
We are based in Guangdong province, China, start from 1994, sell to Domestic Market(30.00%), Africa(15.00%), Southeast Asia(12.00%), South America(12.00%), Eastern Europe(8.00%), South Asia(5.00%), Mid East(5.00%), North America(3.00%), Western Europe(3.00%), Central America(3.00%), Southern Europe(2.00%), Northern Europe(2.00%). There are total about 201-300 people in our office.
More than 30 years experience in machine design and making. Take up 60% of the total sales of domestic market share, export to more than 50 countries and regions. Excellent staff, Long-term technical cooperation with universities. ISO9001, CE, TUV, SGS.
Always a pre-production sample before mass production;
Always final Inspection before shipment.
Pulp Molding Equipment, egg tray machine, fruit tray machine, tableware machine, dishware machine, pulp molding mold.
