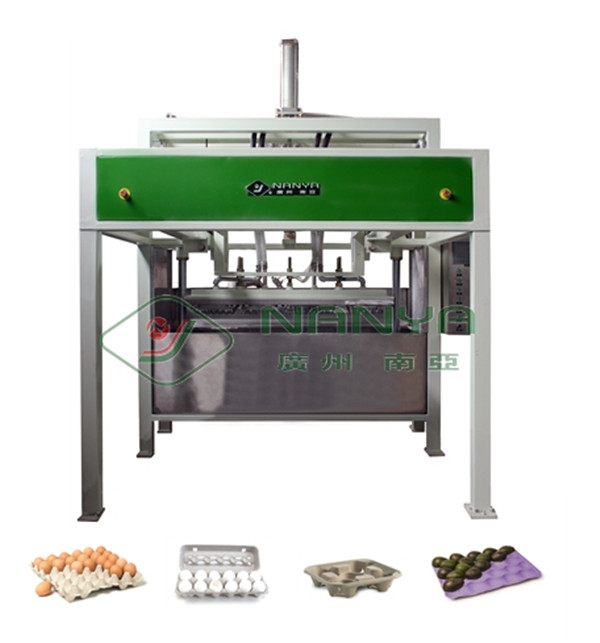

Fully automataic Recycled Waste Paper Pulp Molded Tray Package Making Machine
Machine Description
The molding machine utilizes the slurry provided by the pulping system to form a wet billet on the surface of the mold through the vacuum adsorption effect of the negative pressure system. It is then transferred outside the machine by the air compressor of the positive pressure system to enter the drying program.
Forming machine is one of the main equipment in pulp packaging production. Its function is to manufacture wet blanks. It is an important carrier and an organic complex. The molding function of the mold, the adsorption and filtration function of the negative pressure system, and the transfer and demolding function of the positive pressure system can only be reflected through the use of a molding machine.

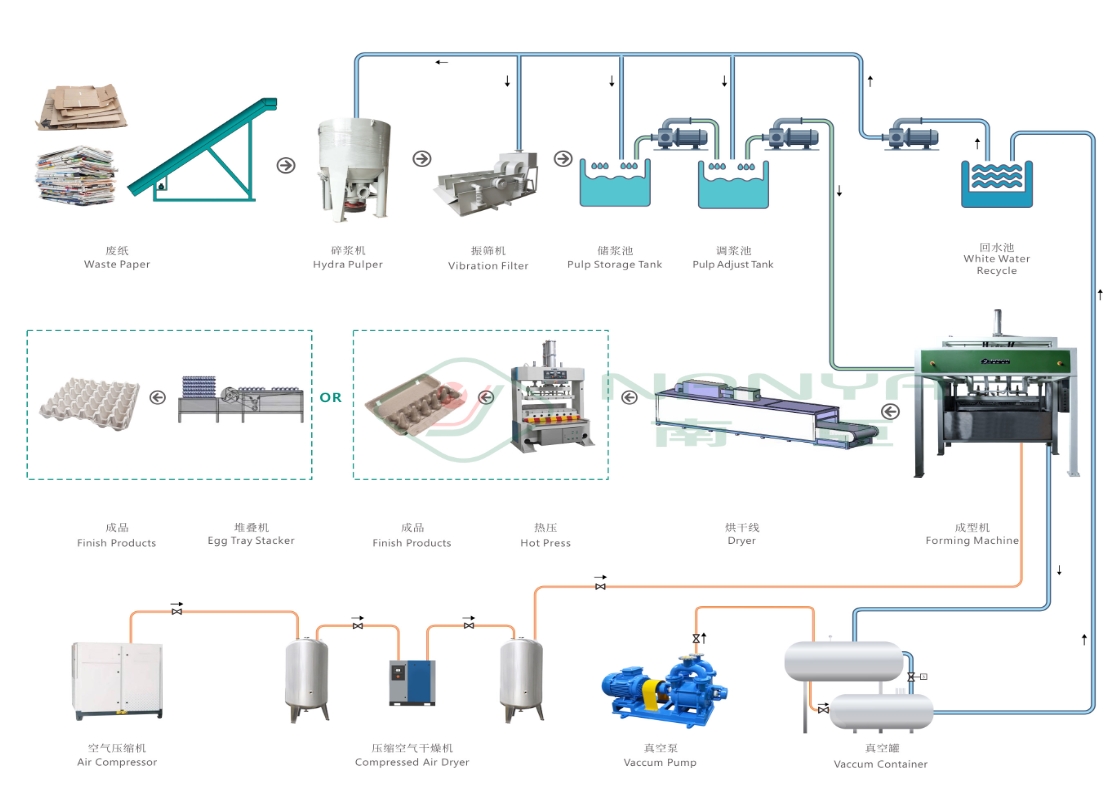

Production Process
Molded pulp products can be simply divided into four parts: pulping, forming, drying and packaging. Here we take egg tray production as an example.
Pulping: waste paper is crushed, filtered and put into the mixing tank in a ratio of 3:1 with water. The entire pulping process will last about 40 minutes. After that you will get a uniform and fine pulp.
Molding: pulp will be sucked onto the pulp mold by the vacuum system for shaping, which is also a key step in determining your product. Under the action of vacuum, the excess water will enter the storage tank for subsequent production.
Drying: formed pulp packaging product still contains high moisture content. This requires high temperature to evaporate the water.
Packaging: finally, the dried egg trays are put into use after finishing and packaging.
Application
The production process is completed by processes such as pulping, molding, drying, and shaping, which are environmentally friendly;
Products can overlap and transportation is convenient.
Pulp molded products, in addition to serving as meal boxes and tableware, are also used for packaging agricultural and sideline products such as egg trays, egg boxes, fruit trays, etc. They can also be used for industrial cushioning packaging, with good cushioning and protection effects. Therefore, the development of pulp molding is very rapid. It can degrade naturally without polluting the environment.
After-sales Service
Guangzhou Nanya Pulp Molding Equipment Co., Ltd. is a manufaciurer with near 30 years of experience in developing and producing pulp molding equipment. We have become ven proficient in the production process of equipment and molds, and we can provide our customer wih mature market analsis and production advice.
So if you purcase our machine,including but not limit below service you will get from us:
1)Provide 12 months warranty period, free replacement of damaged parts during the warranty period.
2)Provide operation manuals, drawings and process flow diagrams for all equipment.
3)After the equipment is installed, we have professional personnel to quide the buver's staff on the operation and maintenance methods4We can quide the buyer's engineer on production process and formula.
